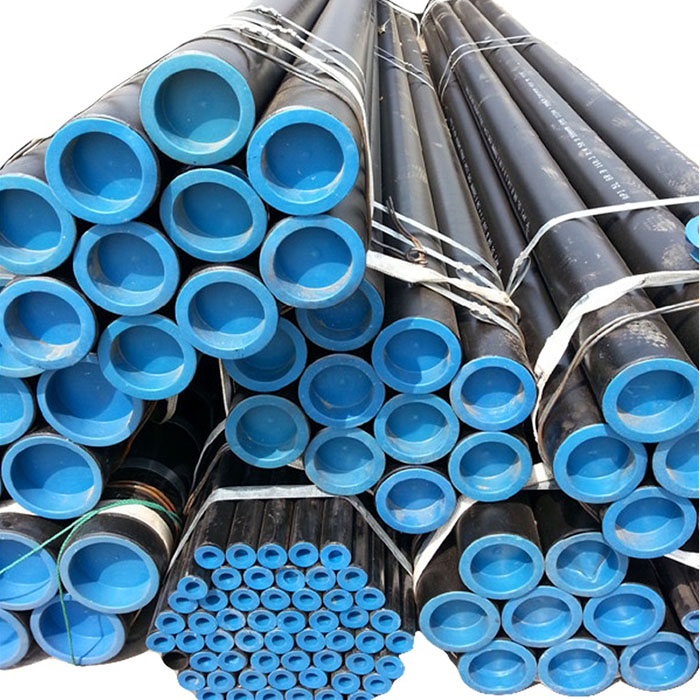

Hot Rolled Tube

High quality of surface properties. The inner and outer surface of the steel tube will not have visible cracks, folds, rolled folds, parting layers and scarring. These defects will be completely cleared, and the removal depth will not exceed the negative deviation of the nominal wall thickness, and the actual wall thickness at the clearing place will not be less than the minimum allowed by the wall thickness. The label of steel tube. Each steel pipe will be marked, each steel tube with a label, the label and label content will include: brand, furnace number, batch number, specification. Material certification Material certification issued acc. to EN10243-3.1, including: Batch No., Grade, Size, Heat No., Length, weight, test method, process, reduction radio, Chemical compostion.
send email to us

Products Details

Place of Origin China
Application Fluid Pipe, middle and thick wall seamless steel tube
Section Shape Round
Size range OD 18mm - 456mm, WT 5mm-65mm
Standard GB/T8162, GB/T8163, GB5310, GB3087, GB/T17396, JISG3445, ASTMA106, ASTMA335, ASTMA179, ASTMA210, ASTMA519, EN10297, EN10210-1, EN10210-2, EN10025, EN10216, DIN1629, DIN17175, API 5CT, API 5DP, API 5L, etc.
Certificate ISO9000, ISO/TS16949, API Q1, API 5L, API 5CT, API 5DP, BV, GL, PED, CPR, CE, ABS, CCS, DNV-GL, LR, ISO14001, ISO 10012, OHSAS18001, etc.
Grade Carbon steel, alloy steel, stainless steel, etc.
MOQ 5 Tons
Surface Customer’s Requirement
Heat treatment Annealing, Normalizing, Tempering.
Material 1020, 1026, 1045, E355, St52, S355J2H, STKM 13A, E470, 4130, 4140, 4145, SCM440, 20G, 15CrMoG, 12Cr1MoVG, 10Cr9Mo1VNbN, T/P11, T/P12, T/P22, T/P23, T/P5, T/P9, T/P91, T/P92, 10MoWVNb, P265GH, P355N, 13CrMo4-5, 10CrMo9-10.37Mn, 34Mn2V, 30CrMo, etc.
Nonmetallic Inclusion test GB/T10561-2005, ISO4967-1998, ASTM E45, DIN50602, JIS G 0555-2003
Jominy text GB/T T225, ISO 642, ASTM A255
Tensile test GB/T T228, ISO 6892
Impact test GB/T 229, ISO 148, EN 10045-1
Ultrasonic test EN10228-3, GB/T 4162, SEP1921
Other test Hydrogen gauge, X-Ray diffractometer, Spectrometer, Magnetic particle test, Phased array ultrasonic test, Karl UT machine, Infra-red test, etc.
1. Flexible delivery time Production plan can be adjusted according to Customer requirement. Set the safety stock. 2. Precise dimension control Wall thickness tolerance of hot rolled can be limited to +/-5%. 3. Fine structure Based on various furnaces (on-line and off-line normalizing and annealing furnaces, quenching and tempering lines), the steel tube structure can be very fine and uniformed. 4. QT properties Quenching furnace temp difference ≤±3°C. Tempering furnace temp difference ≤±2°C. Hardness deviations on tube full length, internal and external, and circumferentially ≤3HRC.

We are committed to working with every customer to share ideas and gather critical information about the fit and performance requirements of your specific application of hydraulic cylinders. If our standard line is not suitable for your application, we can advise you on custom hydraulic cylinders and we have extensive experience in designing them. We strive to develop dynamic, innovative and reliable hydraulic and machining solutions that exceed your expectations.

As a leading hydraulic cylinder manufacturer, we are committed to providing hydraulic cylinders and solutions to meet the needs of a variety of different market segments. Our products are used in a wide range of applications including mining and construction, agriculture and maintenance, load handling, forestry, lifting, recycling, defense, energy and more.
